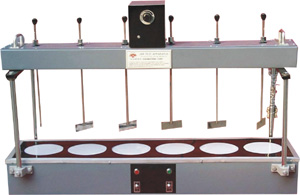

FLUCULATOR


(JAR TESTING OR MULTIPLE SPINDLE STIRRER)

Fitted with D.C. MOTOR But to work on 220 Volts A.C with Variable Speed from 20 R.P.M to 100 R.P.M approx.: SECOR Jar Test Apparatus allows efficient and economical flocculation matter and collides in general and also has been specially designed for use in water treatments to correctly estimate the dosing of alum and such other coagulants for treatment of Water sewage and floc formation test in Water Treatment plants. Heavy duty structural construction for rigidly and vibration-free base consists of flourocent tube mounted below translucent plastic plate to provide diffused cold light to floc Samples:

The gear chain for multiple spindle Drive gives same speed for all the stainless steel stirring paddle approx. 1" x 3" are attached to the rod having 10" long approx.: with lighting knob at top permit adjustment of paddle height spacing of approx.: 6" in between rods permits use to 1000 ml glass Beaker which rest directly on bench. Cap. 1 litre to 2 litre

STIRRERING CAPACITY
(a) FOR TWO STIRRERS
(b) FOR FOUR STIRRERS
(C) FOR SIX STIRRERS

SPECIAL ARRANGEMENTS :
Digital timer & r.p.m counter. high speed Jar Test Apparatus
10-200 r.p.m

Attachment for feeding does to all the stirring unit simultaneously.
